Are you a music producer looking to take your tracks to the next level? One of the most essential tools in your arsenal is equalization, or EQ. Equalization allows you to shape the frequency content of your audio, balancing the elements and enhancing the overall clarity and impact of your music. In this comprehensive guide, we will delve into the world of equalizing, exploring different types of EQ, advanced techniques, and everything you need to know to master the art of equalization. Get ready to unlock the full potential of your music!
Introduction
What is Equalization?
Equalization is a fundamental process in music production that allows you to adjust the balance of different frequency components in an audio signal. By manipulating the frequency content of your audio, you can shape the tone and timbre of your sound, ensuring that all elements work together harmoniously.
The Importance of EQ in Music Production
EQ plays a crucial role in music production. It helps to enhance the clarity, balance, and impact of your tracks. By carefully equalizing each instrument and voice in your mix, you can create a well-balanced and professional-sounding final product.
The Role of EQ in Shaping Sound
Every sound we hear is made up of a combination of different frequencies. EQ allows us to control these frequencies, boosting or cutting specific ranges to shape the overall sound. Whether it’s removing unwanted rumble from a bass drum, adding warmth to a vocal, or bringing out the sparkle in a guitar, EQ is a powerful tool for shaping and sculpting your audio.
Understanding Frequency and Timbre
The Frequency Spectrum
The human ear can perceive a wide range of frequencies, from around 20 Hz to 20 kHz. Each instrument and sound in your mix has energy in different parts of this frequency spectrum. Understanding the different frequency ranges and their characteristics is essential for effective equalization.
Divisions of the Frequency Spectrum
When working with EQ, music producers often divide the frequency spectrum into different ranges to better understand and manipulate the sound. These divisions include:
- Sub Bass (20-60Hz): The super low frequencies that provide depth and power to your mix.
- Low-Mids (60-250Hz): The range that adds warmth and fullness to instruments and vocals.
- Mids (250Hz-1.5kHz): The heart of human hearing, where instruments can be brought forward or pushed back in the mix.
- Upper Mids (1.5-6.6kHz): The range responsible for presence and clarity in vocals and instruments.
- Highs (6.6-20kHz): The treble frequencies that give your mix brilliance and air.
The Role of Timbre in Sound Perception
Timbre refers to the unique quality of a sound that distinguishes it from others with the same pitch and volume. It is what allows us to differentiate between different instruments and voices. Timbre is influenced by the relative amplitudes of different frequencies, and EQ can be used to manipulate these amplitudes to shape the timbre of a sound.
Types of EQ
Parametric EQ
Parametric EQ offer more control over the frequency content of your audio. They allow you to adjust parameters such as frequency, bandwidth, and gain for each band. With parametric EQ, you can target specific problem frequencies or make precise tonal adjustments. They are widely used in recording studios and digital audio workstations (DAWs).
Graphic EQ
A graphic EQ consists of a series of sliders or faders, each representing a specific frequency band. It provides a visual representation of the frequency response and allows you to adjust the level of each band independently. Graphic EQs are commonly found in live sound setups and are useful for making broad tonal adjustments.
Other Common Types of EQ:
- Shelving EQ: These EQs allow for boosting or cutting all frequencies above or below a certain point. They are commonly used for adjusting the overall bass or treble of a signal.
- Dynamic EQ: Combining the characteristics of dynamic processing and equalization, dynamic EQs apply EQ changes only when the input signal crosses a certain threshold, making them useful for controlling frequency content in a dynamic manner.
- Linear Phase EQ: Unlike traditional EQs, linear phase EQs maintain phase relationships across the frequency spectrum, making them suitable for mastering and other critical applications where phase coherency is important.
- Passive EQ: This type of EQ uses passive circuitry, typically found in analog hardware, to alter the frequency content of audio signals. Passive EQs are known for their musical and warm sound characteristics.
- Digital EQ: These EQs operate entirely in the digital domain, offering precise control and flexibility. They are commonly found in digital audio workstations and software plugins.
Each type of EQ offers distinct advantages and is chosen based on the specific requirements of the audio material being processed.
Graphic vs Parametric Equalizations
The main difference between graphic and parametric EQ lies in the level of control they offer. Graphic EQs provide fixed frequency bands and limited adjustment options, while parametric EQs allow you to select specific frequencies, adjust their bandwidth, and finely control the gain. Parametric EQs are more versatile and suited for detailed equalization tasks, while graphic EQs are better suited for broad tonal adjustments.
Choosing the Right EQ for Your Needs
When choosing an EQ, consider your specific needs and workflow. Graphic EQs are great for live sound and quick tonal adjustments, while parametric EQs offer more precision and control for studio work. Many modern digital audio workstations come with built-in parametric EQ plugins, providing powerful equalization capabilities right at your fingertips.
The Basic Controls
To effectively use EQ, it’s important to understand the basic controls available to you. These controls vary depending on the equalization plugin or hardware unit you are using, but they generally include filters, slope, Q value, frequency, and gain.
Filters

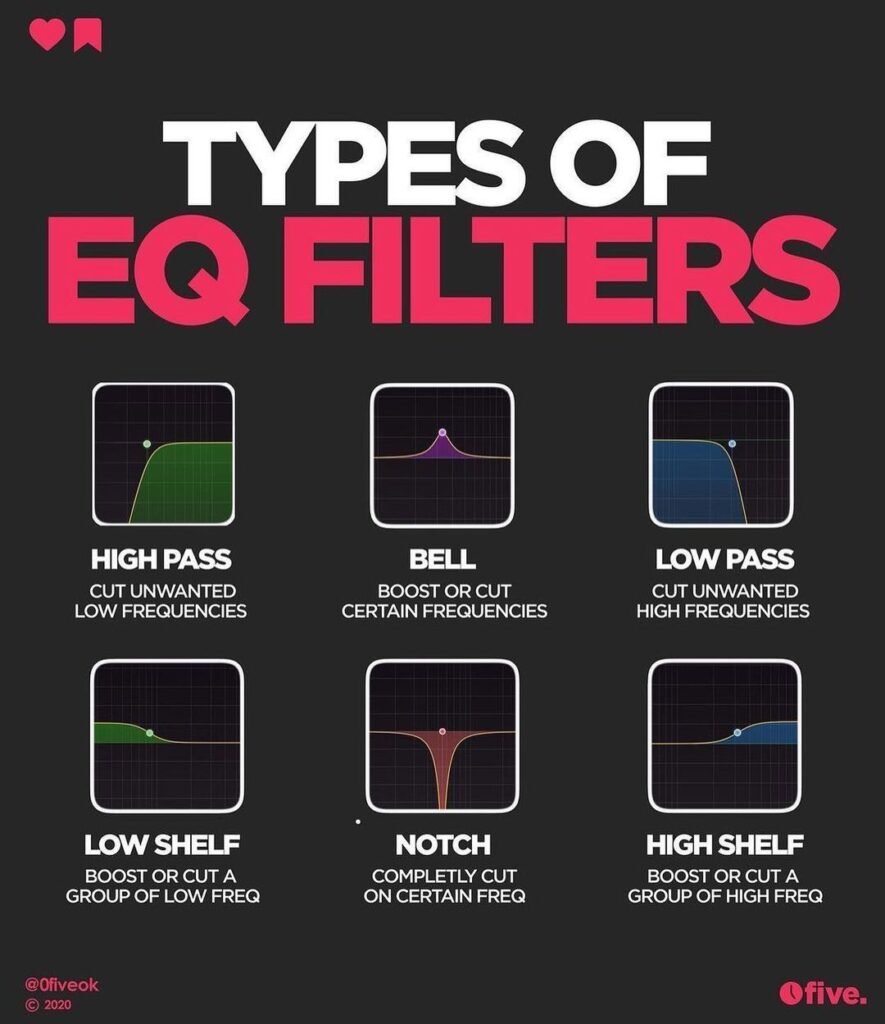

Filters are the fundamental tools found on an EQ. They determine how your EQ affects the audio. Common filter types include:
- High-Pass Filter (HPF): Removes low frequencies and allows higher frequencies to pass through.
- Low-Pass Filter (LPF): Removes high frequencies and allows lower frequencies to pass through.
- Bell Filter: Boosts or cuts frequencies around a specific point, with adjustable bandwidth.
- Shelf Filter: Boosts or cuts frequencies above or below a certain point, affecting a broad range of frequencies.
- Notch Filter: Removes a narrow range of frequencies, useful for eliminating specific problem frequencies.
Slope
The slope control determines how aggressively the equalization affects frequencies above or below its corner frequency. It is measured in decibels per octave (dB/octave). A steeper slope provides a more drastic change in frequency response, while a gentler slope creates a more subtle transition.
Q Value
The Q value, also known as the quality factor, determines the bandwidth of an EQ band. A high Q value results in a narrower bandwidth, allowing you to target specific frequencies. A low Q value produces a broader bandwidth, affecting a wider range of frequencies.
Frequency
The frequency control allows you to select the center frequency of an EQ band. This is where you can boost or cut the audio. By adjusting the frequency, you can target specific problem frequencies or enhance desired elements of the sound.
Gain
The gain control determines the amount of boost or cut applied to the selected frequency. Positive gain values boost the selected frequency, while negative gain values cut it. The gain control allows you to shape the tonal balance of your audio by emphasizing or reducing specific frequency ranges.
Techniques for Mixing
Equalization is a powerful tool for balancing and enhancing the elements in your mix. Here are some essential equalization techniques to help you achieve a professional sound:
Cutting Unwanted Frequencies
One of the primary uses of EQ is to remove unwanted frequencies from your audio. This could include rumble from low-frequency instruments, background noise, or harsh frequencies that cause listener fatigue. By identifying and cutting these frequencies, you can clean up your mix and create more space for the important elements to shine.
Boosting Desired Frequencies
EQ can also be used to enhance the desired frequencies in your audio. For example, you might want to boost the presence of a vocal track to make it stand out in the mix, or add warmth to a guitar to give it a richer tone. By selectively boosting frequencies, you can bring out the best qualities of each instrument and create a more balanced and cohesive sound.
Balancing Instruments in the Mix
EQ is an invaluable tool for balancing the different instruments in your mix. By carefully equalizing each instrument, you can ensure that they don’t compete for sonic space and that each element can be heard clearly. For example, you might use equalization to carve out a space in the midrange for a lead guitar to cut through the mix or to reduce the low end of a bass guitar to make room for the kick drum.
Dealing with Masking Issues
Masking occurs when two or more sounds occupy the same frequency range, making it difficult to distinguish them in the mix. EQ can help alleviate masking issues by selectively cutting or boosting frequencies to create separation between instruments. For example, if the bass guitar and kick drum are masking each other, you can use EQ to reduce the overlapping frequencies, allowing each instrument to be heard more clearly.
Creating Space and Depth
EQ can also be used to create a sense of space and depth in your mix. By carefully sculpting the frequency content of each instrument, you can position them in the stereo field and create a three-dimensional soundstage. For example, you might use EQ to emphasize the high frequencies of a guitar in one ear and the low frequencies of a bass in the other, creating a wide and immersive sound.
Advanced Tips and Tricks
While the basic EQ techniques are essential for achieving a balanced mix, there are also advanced tips and tricks that can take your EQ skills to the next level. Here are a few techniques to explore:
Surgical Notch Filtering
Surgical notch filtering involves using narrow bandwidth cuts to remove specific problem frequencies or resonances in your audio. This technique is particularly useful for dealing with room resonances, eliminating unwanted feedback, or taming harsh frequencies in vocal recordings. By identifying the problematic frequencies and applying precise notch filters, you can clean up your mix and achieve a more polished sound.
Dynamic EQ
Dynamic EQ combines the precision of EQ with the flexibility of dynamic processing. It allows you to target specific frequencies and control their level based on the input signal’s amplitude. This technique is especially useful for controlling resonances, managing frequency buildup, or adding clarity and presence to dynamic instruments such as drums or vocals.
Mid-Side EQ
Mid-side EQ allows you to independently process the mid and side components of a stereo signal. By adjusting the EQ settings for each component separately, you can fine-tune the stereo image and create a more focused and balanced mix. For example, you might use mid-side EQ to boost the center vocals while reducing the side information to create a more upfront and centered sound.
Parallel EQ
Parallel EQ involves blending an equalized version of a track with the original unprocessed signal. This technique allows you to enhance certain frequencies or add character to a sound without completely altering its original tone. By blending the processed and unprocessed signals, you can achieve a more controlled and polished sound while retaining the natural characteristics of the audio.
Linear Phase EQ
Linear phase EQ is a type of EQ that maintains phase coherence across the frequency spectrum. Unlike traditional EQs, which can introduce phase distortion and smearing, linear phase EQs preserve the timing relationship between different frequencies. This can be particularly useful for mastering applications or situations where phase coherency is critical.
Equalization in Mastering
Equalization plays a significant role in the mastering process. While the primary goal of mastering is to balance and enhance the overall mix, EQ is used to shape the tonality, correct any frequency imbalances, and ensure consistency across different playback systems. Here are some key considerations when using EQ in mastering:
The Role of EQ in the Mastering Process
In mastering, EQ is used to make broad tonal adjustments to the mix. It is often applied to the entire mix or specific frequency ranges to achieve the desired tonal balance. The goal is to enhance the overall clarity, warmth, and depth of the music while preserving the intended tonal characteristics.
Broad EQ Adjustments for Tonality
Broad EQ adjustments in mastering are typically applied using shelving or gentle bell filters. These adjustments are made to shape the overall tonality of the mix, adding brightness, warmth, or depth as needed. For example, a gentle high-shelf boost can add air and sparkle to the mix, while a low-shelf cut can reduce excessive low-end energy.
Surgical EQ for Problem Solving
In addition to broad tonal adjustments, surgical EQ may be used in mastering to address specific frequency imbalances or problem areas in the mix. This could involve addressing resonances, reducing harsh frequencies, or correcting frequency buildup. Careful use of surgical EQ can help improve the overall balance and clarity of the mix.
Enhancing the Overall Balance and Clarity
The primary goal of EQ in mastering is to enhance the overall balance and clarity of the mix. This involves carefully analyzing the frequency balance of the mix, identifying any areas that need adjustment, and applying EQ accordingly. By making subtle and precise EQ adjustments, you can bring out the best qualities of the mix and ensure it translates well across different playback systems.
Using Reference Tracks
Using reference tracks is a valuable technique in music production, including equalization. A reference track is a professionally mixed and mastered song that you use as a benchmark for your own mix. Here’s how you can use reference tracks to improve your EQ skills:
The Power of Reference Tracks
Reference tracks provide a point of comparison and help you develop a better understanding of the tonal balance and frequency distribution in professional mixes. By listening critically to reference tracks in your genre, you can gain insights into how different instruments are balanced and how EQ is used to achieve a polished and cohesive sound.
Analyzing Frequency Balance
When using a reference track for EQ, pay close attention to the frequency balance. Use spectrum analyzers or visual EQ plugins to observe the frequency distribution in the reference track. Compare it to your own mix and identify any areas where your mix may be lacking or overemphasizing certain frequencies. This will guide your EQ decisions and help you achieve a more balanced mix.
Matching the EQ of Reference Tracks
While you don’t want to copy the EQ settings of a reference track directly, you can use it as a reference point for achieving a similar tonal balance. Experiment with EQ settings to match the desired frequency distribution of the reference track while still maintaining the unique characteristics of your mix. This will help you achieve a professional sound that stands up to commercial releases in your genre.
Equalization for Different Instruments
Different instruments have unique frequency characteristics and require specific EQ approaches. Here are some general guidelines for EQing common instruments:
Drums and Percussion
Drums and percussion instruments often benefit from EQ adjustments to enhance their impact and clarity. For kick drums, boosting the low frequencies and reducing boxiness can help achieve a punchy sound. Snare drums can benefit from boosting the midrange to bring out the attack, while hi-hats may require some high-frequency enhancement for sparkle. Experiment with EQ to find the right balance for each drum element.
Bass and Guitars
Bass instruments, such as bass guitars or synth bass, often require careful EQ to ensure they sit well in the mix without overpowering other elements. Reducing muddiness in the low-mids and enhancing the presence in the upper-mids can help the bass cut through the mix. For guitars, consider reducing any harsh frequencies in the high-mids, enhancing the body in the low-mids, and adding clarity and sparkle in the high frequencies.
Vocals
Vocals are typically the centerpiece of a mix and require special attention when it comes to EQ. Enhancing the presence and clarity in the upper-mids can help the vocals cut through the mix, while reducing any harsh or sibilant frequencies can make them more pleasant to listen to. Additionally, gentle boosts or cuts in the low-mids can help address any boomy or muddy characteristics.
Synthesizers and Keyboards
Synthesizers and keyboards often have a wide frequency range and can benefit from careful EQ adjustments. Experiment with shaping the sound by emphasizing or reducing specific frequency ranges to achieve the desired character. For example, boosting the high frequencies can add brightness and definition to a pad sound, while reducing the low frequencies can clean up the low end and prevent muddiness.
Other Instruments
Each instrument has its own unique frequency characteristics, and EQ should be used to address any tonal imbalances or problematic frequencies. Woodwind instruments may require some low-mid reduction to remove muddiness, while brass instruments can benefit from some high-mid boost for presence. Experimentation and critical listening are key to finding the right EQ settings for each instrument.
EQ in Different Genres
Different music genres have distinct sonic characteristics and EQ requirements. Here are some genre-specific EQ techniques to consider:
Rock and Metal
Rock and metal music often feature heavy guitars, powerful drums, and aggressive vocals. To achieve a powerful and balanced mix in these genres, consider boosting the low and low-mid frequencies to add weight and impact to the guitars and drums. Additionally, adding presence in the upper-mids can help the vocals cut through the mix and maintain clarity.
Electronic Music
Electronic music covers a wide range of genres, each with its own sonic characteristics. In general, electronic music relies heavily on synthesized sounds and intricate arrangements. EQ techniques for electronic music often involve enhancing the low-end frequencies for a solid and powerful bass, shaping the midrange to bring out the melodic elements, and adding brightness and sparkle in the high frequencies for a polished and energetic sound.
Hip-Hop and Rap
Hip-hop and rap music focus heavily on vocals and bass. EQ techniques for these genres often involve boosting the low frequencies to achieve a deep and powerful bass, enhancing the presence and clarity of the vocals in the midrange, and adding brightness and crispness in the high frequencies. Additionally, careful EQ adjustments can help create space for different elements in the mix, ensuring a clean and well-balanced sound.
Classical and Orchestral Music
Classical and orchestral music require a delicate and balanced approach to EQ. The goal is to capture the natural sound of each instrument while achieving overall clarity and cohesion. EQ techniques for classical music often involve subtle adjustments to enhance the timbre and presence of each instrument, while ensuring that the mix retains its natural and organic qualities.
Pop and R&B
Pop and R&B music often feature catchy melodies, powerful vocals, and a polished sound. EQ techniques in these genres focus on achieving a clean and balanced mix, with emphasis on the vocals and a tight and controlled low-end. Enhancing the presence and clarity of the vocals, adding brightness and sparkle in the high frequencies, and controlling the low frequencies for a solid and punchy bass are key considerations in pop and R&B EQ.
Developing Your Equalization Skills
Mastering the art of equalization takes time and practice. Here are some tips to help you develop your EQ skills:
Practicing with Different Tracks
One of the best ways to improve your EQ skills is to practice on a variety of tracks in different genres. Each track presents unique challenges and opportunities for EQ, allowing you to experiment with different techniques and develop a better understanding of how EQ affects different instruments and sounds.
Experimenting with EQ Settings
Don’t be afraid to experiment with different EQ settings to discover new sounds and creative possibilities. EQ is a subjective process, and what works for one track may not work for another. Trust your ears and embrace the process of trial and error to find the best EQ settings for each specific situation.
Training Your Ears
Training your ears is crucial for becoming an effective EQ engineer. Take the time to listen critically to different sounds and instruments, paying attention to their frequency characteristics and tonal balance. Practice identifying problem frequencies, resonances, and other sonic imperfections. The more you train your ears, the better equipped you’ll be to make informed equalizing decisions.
Collaborating and Seeking Feedback
Collaborating with other musicians and producers is a great way to gain new perspectives and learn from their equalization techniques. Share your work with others and seek feedback on your mixes. Constructive criticism can help you identify areas for improvement and refine your EQ skills.
EQ Plugins and Tools
There is a wide range of EQ plugins and tools available to music producers. Here are some popular options:
Stock Plugins
Many digital audio workstations (DAWs) come with built-in EQ plugins that offer a range of features and capabilities. These stock EQ plugins are often a great starting point, providing essential EQ controls and functionality.
Third-Party Plugins
There is a vast selection of third-party EQ plugins available, offering various features, sonic characteristics, and workflows. These plugins range from simple and intuitive to complex and advanced, allowing you to find the perfect EQ tool for your needs and preferences.
Hardware
Hardware EQ units, such as outboard gear and analog consoles, offer a different sonic character and tactile experience compared to software-based EQ. They can add warmth, color, and a sense of analog authenticity to your sound. However, they often come at a higher cost and require additional setup and routing.
Freeware Options
If you’re on a budget or looking for free alternatives, there are many freeware EQ plugins available that offer professional-quality equalization. These plugins can be a great starting point for beginners or a cost-effective solution for producers with limited resources.
Using EQ in Digital Audio Workstations (DAWs)
Most modern DAWs provide a wide range of EQ plugins and tools. These plugins offer a seamless integration with your workflow, allowing you to apply EQ directly to individual tracks or the entire mix. Take the time to explore and familiarize yourself with the EQ options in your DAW, as each plugin may have unique features and capabilities.
Conclusion
Equalization is a fundamental process in music production, allowing you to shape the frequency content of your audio and create a balanced and professional sound. By understanding the different types of EQ, mastering the basic controls, and exploring advanced techniques, you can take your music to the next level. Remember to trust your ears, practice regularly, and embrace experimentation to develop your EQ skills. With the right tools and techniques, you’ll be able to achieve powerful and polished mixes that stand out in the industry. Happy EQing!
